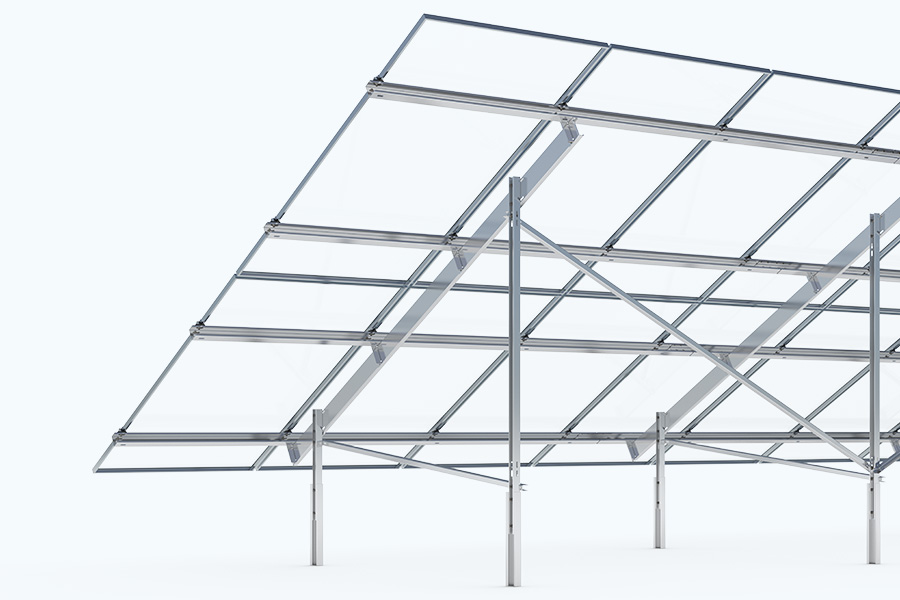

Ground Mounting System 2VS

Descriptions

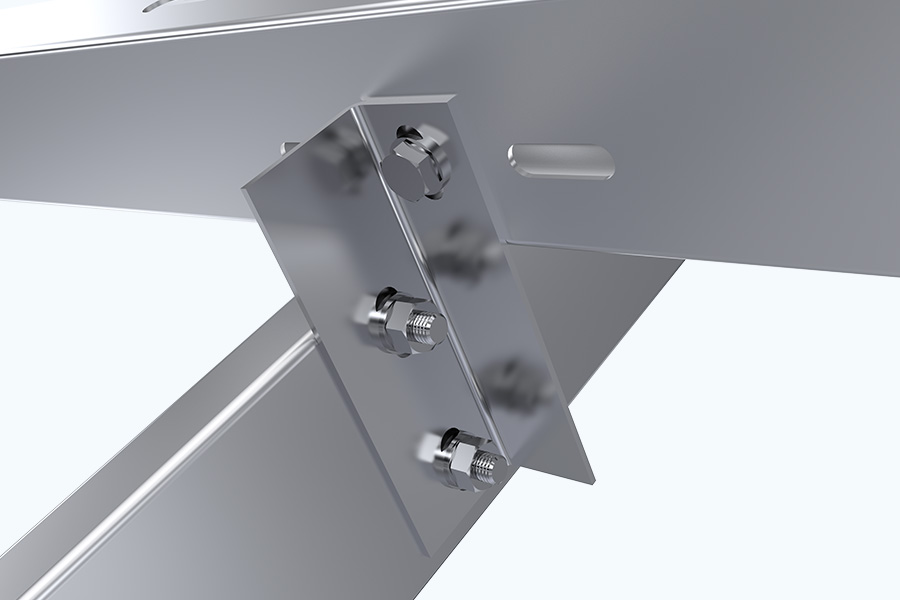

Quick, easy installation, due to light weight and original fasteners that allow you to mount panels from both sides.
The high-strength grade of steel reduces the weight of structures, which means a considerable cost cutting of the price and costs of transportation. The structure's resistance to loads meets Eurocode standards.
Hot-dip galvanizing of each part in accordance with ISO 1461:2009 provides corrosion resistance for a long period of time. Segmented posts for easier handling.

Technical Data

Place of installation	ground
Foundation system	driving of piles, concreting, on concrete blocks
Module frame height	30 - 40 mm (or under the order)
Orientation of panels	portrait
Structure Material	steel S350, S420
Coating	pre-galvanized Z600, HDG

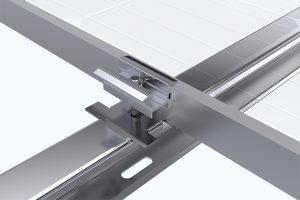

Panel fastening	aluminium
Tilt angle	constant 5° ÷ 30° (or under the order)
Standards	ISO 9001:2015 Design and sale of solar panel mounting system; EN 1991-1-1: 2010 Eurocode 1. Actions on structures; EN 1993-1-1: 2010 Eurocode 3. Design of steel
Service life	25 years
Guarantee	10 years
