Ground Mounting System 4HEW

2vew-900x600-catalog-v1-1
product-900x600-catalog-cc-lb
product-900x600-catalog-15
product-element-900x600-7
4hs-900x600-catalog-var61
2vew-900x600-catalog-v1-1 product-900x600-catalog-cc-lb product-900x600-catalog-15 product-element-900x600-7 4hs-900x600-catalog-var61

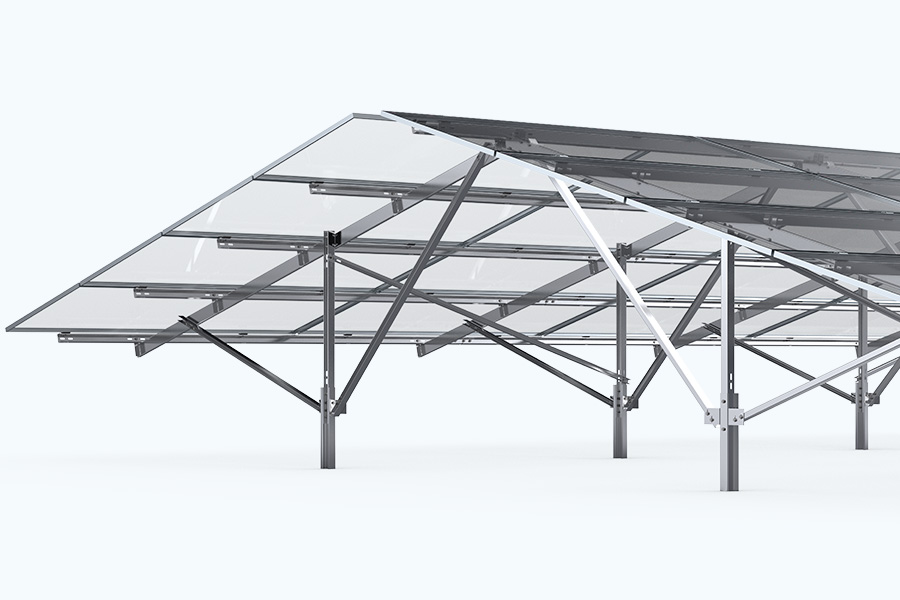

Special solution for East-West panels arrangement

Descriptions

The peculiarity of the ground system with the layout of panels to the East and West is that been at angles of 10-15° they are installed closer to each other. This allows fill at maximally the space on the site and minimize shading.

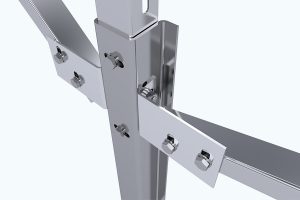

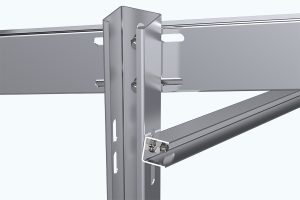

Quick, easy installation, due to light weight and original fasteners that allow you to mount panels from both sides.
The high-strength grade of steel reduces the weight of structures, which means a considerable cost cutting of the price and costs of transportation. The structure's resistance to loads meets Eurocode standards.
Hot-dip galvanizing of each part in accordance with ISO 1461:2009 provides corrosion resistance for a long period of time. Segmented posts for easier handling.

Technical Data
Place of installationground
Foundation systemdriving of piles, concreting, on concrete blocks
Module frame height30 - 40 mm (or under the order)
Orientation of panelsportrait/landscape
Structure Materialsteel S350, S420
Coatingpre-galvanized Z600, HDG
Panel fasteningaluminium
Tilt angleconstant 5° ÷ 30° (or under the order)
Standards
  • ISO 9001:2015 Design and sale of solar panel mounting system;
  • EN 1991-1-1: 2010 Eurocode 1. Actions on structures;
  • EN 1993-1-1: 2010 Eurocode 3. Design of steel
Service life25 years
Guarantee10 years
